Lab 2

Controller-Based Connectivity

with ONOS

Rogers Executive Workshop 3 — Transport Network Programmability

Getting Started

Connecting Mininet to ONOS

Lab 2 at a glance

In this lab you will:

  • connect a triangle topology to ONOS
  • explore devices, links, hosts, and flows from the ONOS CLI
  • query ONOS from Python through the REST API
  • install host intents and observe automatic flow-rule installation
  • watch ONOS reroute traffic after a link failure

What to focus on In Lab 1 you were the control plane. In Lab 2, ONOS takes over and reacts to the network for you.

From Lab 1 to Lab 2

In Lab 1 you installed flow rules manually with ovs-ofctl.

Today ONOS does that work automatically:

Lab 1 Lab 2
Flow rules You write them ONOS installs them
Topology view You infer it ONOS discovers it
Link failure Traffic stops ONOS reroutes
Control plane You ONOS

Keep this contrast in mind In this lab, you ask for connectivity and observe how ONOS turns that into switch behavior.

Where ONOS Fits

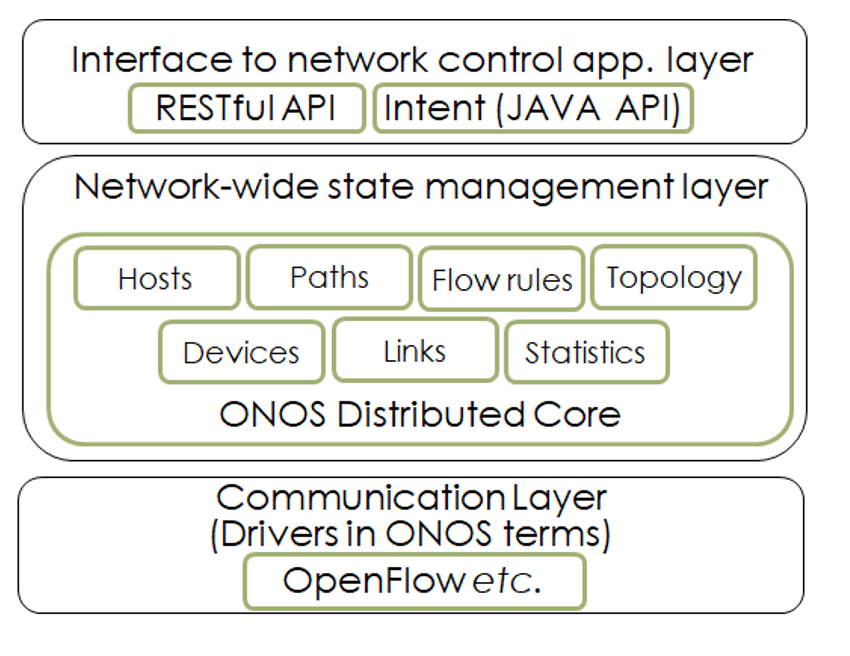

Overview of ONOS showing applications, controller services, and southbound control of network devices.
  • ONOS sits between applications and the network devices
  • applications express policy through ONOS APIs
  • ONOS discovers topology and programs switches through OpenFlow
  • intents let you describe what you want without specifying every rule yourself

Triangle topology

Triangle topology with hosts h1, h2, h3, and switches s1, s2, s3.
  • s1, s2, and s3 form a triangle
  • h1, h2, and h3 connect at the edge
  • for this lab, focus on h1, h2, and the alternate path through s3

What matters here This topology lets you observe ONOS discovery, automatic forwarding, and rerouting after a link failure.

Before you start

For this lab:

  • work from ~/labs/lab2
  • keep at least four terminals open
  • make sure Docker and Mininet commands run with sudo where needed
  • use Ctrl+D or exit to leave the Mininet CLI cleanly

You will use:

  • one terminal for Mininet
  • one terminal for the ONOS CLI
  • one regular shell for lab scripts such as preflight_check.py and lab2_skeleton.py
  • one regular shell for the checker, curl, and ovs-ofctl

Check ONOS

Make sure the ONOS container is running:

docker ps | grep onos

If ONOS is stopped, start it:

docker start onos

If docker start onos fails because the container does not exist, ask the instructor to rerun the ONOS setup playbook. The workshop image normally creates the container with ports 6653, 8101, and 8181 already published.

Then wait about 30 seconds and test the REST API:

curl -u onos:rocks http://localhost:8181/onos/v1/devices

You should see A JSON response. An empty device list is fine at this point.

Start the topology

Start Mininet connected to ONOS:

sudo python3 triangle_topology.py --onos

You should land in the Mininet CLI:

mininet>

What --onos does It connects each OVS switch to ONOS as a remote OpenFlow controller on port 6653.

For the first part of the lab, pay attention to:

  • which switches and links ONOS discovers
  • when hosts appear in ONOS
  • what changes after you activate forwarding

Connect to the ONOS CLI

In a second terminal, connect to the ONOS Karaf CLI:

ssh -p 8101 -o HostKeyAlgorithms=+ssh-rsa onos@localhost
# password: rocks

List the active applications:

onos> apps -a -s

You will use the CLI for app activation, topology inspection, and intent inspection.

Activate the required apps

Turn on the ONOS apps needed for the first part of this lab:

onos> app activate org.onosproject.openflow
onos> app activate org.onosproject.fwd

Then confirm the switches are visible:

onos> devices

You should see Three devices, each in the ACTIVE state. If the list is empty, wait a few seconds and try again.

Why activate fwd now It makes the first discovery and connectivity checks work cleanly. You will turn it off before the intent demo.

Explore topology from the ONOS CLI

Start with these CLI commands:

onos> devices
onos> ports
onos> links
onos> hosts
onos> flows

At this point hosts may still be empty. Now trigger host discovery from Mininet:

mininet> pingall

Then check hosts again:

onos> hosts

What this shows ONOS learns switches and links first, then learns hosts after traffic appears.

Inspect reactive forwarding

With fwd active, test connectivity from Mininet:

mininet> h1 ping -c 3 h2
mininet> pingall

Check what ONOS installed:

onos> flows

Run this in your regular shell, not inside mininet> or onos>:

sudo ovs-ofctl -O OpenFlow13 dump-flows s1

What you should observe Connectivity works even though you never typed ovs-ofctl add-flow yourself.

Intents: what, not how

ONOS supports intents: high-level connectivity requests.

Instead of saying:

install these exact flow rules on these exact switches

you say:

connect host A to host B

ONOS then:

  • computes a path
  • installs flow rules automatically
  • recomputes if the topology changes

Turn off reactive forwarding

Before testing intents, turn off the earlier reactive-forwarding app:

onos> app deactivate org.onosproject.fwd

Keep the same Mininet topology running.

Do not restart Mininet here Restarting resets the host-side state and can make the intent demo look broken even when the intent rules are installed correctly.

Why this helps You stop adding new fwd rules, but keep the host discovery and traffic context from the earlier steps.

Install a host intent

First confirm ONOS still knows the hosts:

onos> hosts

Then install a host-to-host intent:

onos> add-host-intent <h1-id> <h2-id>
onos> intents -i

Verify connectivity:

mininet> h1 ping -c 3 h2

Important Install the host intent in the same Mininet session you used for the forwarding demo.

What this shows The intent expresses the desired connectivity, and ONOS handles the switch programming.

Intent preserves connectivity

Triangle topology with the direct s1 to s2 link failed and traffic rerouted through s3 while the intent remains installed.
  • the host intent still says "connect h1 to h2"
  • when the direct s1-s2 link fails, ONOS recomputes the path
  • traffic continues over s1 -> s3 -> s2 without changing the intent itself

What changes The path and flow rules change. The intent does not.

Path before failure

With the host intent already working between h1 and h2, confirm the current path:

mininet> h1 ping -c 3 h2
onos> paths of:0000000000000001 of:0000000000000002

Expected path:

of:0000000000000001/2-of:0000000000000002/2; cost=1.0

What this shows The intent is using the direct s1 -> s2 path before any failure.

Tear down the direct link

Disable the s1-s2 link, then check the path again:

mininet> link s1 s2 down
mininet> h1 ping -c 5 h2
onos> paths of:0000000000000001 of:0000000000000002

Now observe ONOS:

onos> links
onos> intents -i
onos> flows

Expected path while the link is down:

of:0000000000000001/3-of:0000000000000003/3==>of:0000000000000003/2-of:0000000000000002/3; cost=2.0

What this shows The intent stays installed, but ONOS recomputes the path and moves traffic over s1 -> s3 -> s2.

Restore the direct path

Bring the direct link back and confirm ONOS returns to the shorter path:

mininet> link s1 s2 up
onos> paths of:0000000000000001 of:0000000000000002

Expected path after recovery:

of:0000000000000001/2-of:0000000000000002/2; cost=1.0

From OVS, inspect rules on the alternate switch while the failure is active:

Run this in your regular shell, not inside mininet> or onos>:

sudo ovs-ofctl -O OpenFlow13 dump-flows s3

What changes The path and flow rules change. The intent does not.

List and remove intents

List the installed intents:

onos> intents -i

Use the appId and id from that output to remove one:

onos> remove-intent org.onosproject.cli 0x0
onos> intents -i

What to check After removal, the host intent should disappear from the installed list.

REST API

Query ONOS first with curl, then from Python

Start with curl

You can query the ONOS REST API directly from your regular shell:

Base URL:  http://localhost:8181/onos/v1
Auth:      onos / rocks

Try:

curl -u onos:rocks http://localhost:8181/onos/v1/devices

Useful endpoints:

Endpoint Returns
/devices switches
/links discovered links
/hosts discovered hosts
/flows/<deviceId> flow rules on a switch
/intents installed intents

Add a flow rule with curl

Use the example template in flow_rule_template.json, then POST it to a device:

curl -u onos:rocks -X POST \
  -H 'Content-Type: application/json' \
  http://localhost:8181/onos/v1/flows/of:0000000000000001 \
  -d @flow_rule_template.json

To verify the rule was added, check ONOS and OVS:

onos> flows

Run this in your regular shell:

sudo ovs-ofctl -O OpenFlow13 dump-flows s1

What to look for You should see a new flow entry on s1 that matches the fields from flow_rule_template.json.

Remove a flow rule with the REST API

To remove a rule, you need:

  • the device ID
  • the flow ID on that device

First inspect the flows:

curl -u onos:rocks http://localhost:8181/onos/v1/flows/of:0000000000000001

Then delete the specific flow:

curl -u onos:rocks -X DELETE \
  http://localhost:8181/onos/v1/flows/of:0000000000000001/<flowId>

Why this matters Your Lab 2 app will use the same two ideas: POST new rules when a path is chosen, then DELETE old rules when the path changes.

Query devices from Python

Use the example script query_topology.py:

import requests

BASE = 'http://localhost:8181/onos/v1'
AUTH = ('onos', 'rocks')

r = requests.get(f'{BASE}/devices', auth=AUTH)
devices = r.json()['devices']

for d in devices:
    print(d['id'], d['type'], d['available'])

Run it:

python3 query_topology.py

You should see Three device IDs, each with available set to True.

Query links and hosts

The lab folder also includes query_hosts.py:

import requests

BASE = 'http://localhost:8181/onos/v1'
AUTH = ('onos', 'rocks')

links = requests.get(f'{BASE}/links', auth=AUTH).json()['links']
print(f"{len(links)} links")

hosts = requests.get(f'{BASE}/hosts', auth=AUTH).json()['hosts']
for h in hosts:
    print(h['id'], h['ipAddresses'], h['locations'][0]['elementId'])

Before running this Use pingall once so ONOS has discovered all hosts.

What you should see The host entries should include IP addresses, not just MAC addresses and locations.

Add the same flow rule from Python

The lab folder also includes add_flow_rule.py:

python3 add_flow_rule.py

Then verify the rule the same way:

onos> flows

Run this in your regular shell:

sudo ovs-ofctl -O OpenFlow13 dump-flows s1

Why this matters Your Lab 2 app will use the same REST operation, but it will build the rule dynamically instead of loading a fixed template.

Independent Challenge

Building a small controller-side application

What You Will Build

In this challenge, you will write a small ONOS-facing Python app that:

  • finds two hosts by IP address
  • asks ONOS for the current shortest path
  • installs flow rules directly through the REST API
  • monitors for link failure
  • recomputes and reinstalls rules after a failure

Key difference from the earlier slides Here you are not using intents. Your Python app is acting like a small controller application.

Keep These Open

During the independent challenge, keep these terminals open:

  1. Mininet
    Use this for pingall, link s1 s2 down, and manual ping checks.
  2. ONOS CLI
    Use this for links, hosts, flows, and paths.
  3. Your app
    Run python3 lab2_skeleton.py 10.0.0.1 10.0.0.2 here.
  4. Checker / shell tools
    Run python3 preflight_check.py, sudo python3 verify_lab2.py ..., curl, and ovs-ofctl here.

Why this helps You can keep the network, controller, app, and checks visible at the same time.

Files You Will Use

Use these files for the challenge:

  • preflight_check.py confirms ONOS is ready for the challenge
  • query_topology.py, query_hosts.py, and inspect_path.py are example helpers
  • lab2_skeleton.py is your starter application
  • verify_lab2.py checks the challenge behavior
  • flow_rule_template.json shows the JSON shape for a flow rule
  • solutions/lab2_solution.py is the reference solution

Get Ready

Before you run lab2_skeleton.py, check readiness with:

python3 preflight_check.py

It confirms:

  • ONOS is reachable
  • switches, links, and host IPs are visible
  • paths returns a route between the endpoint switches

If it fails:

  • rerun pingall if host IPs are missing
  • check links and ports if paths is empty

Rule of thumb The challenge works only after ONOS knows the links, the hosts, and at least one path between the two endpoint switches.

How To Think About It

Break the challenge into five milestones:

  1. Find the two hosts in ONOS.
  2. Ask ONOS for the current path between them.
  3. Install flow rules on the switches along that path.
  4. Detect when a link on that path fails.
  5. Remove the old rules and install new ones for the new path.

How we will approach it The next two slides walk through milestones 1 and 2 together. Then your own code will handle milestones 3, 4, and 5.

Step 1: Find Hosts

First, use /hosts to answer two questions:

  • what is the ONOS host ID for 10.0.0.1 and 10.0.0.2?
  • which switch is each host attached to?

You can reuse query_hosts.py, or inspect the same logic below:

import requests

BASE = 'http://localhost:8181/onos/v1'
AUTH = ('onos', 'rocks')

hosts = requests.get(f'{BASE}/hosts', auth=AUTH).json()['hosts']
for h in hosts:
    print(h['id'], h['ipAddresses'], h['locations'][0]['elementId'])

What to look for Find the entries for 10.0.0.1 and 10.0.0.2, then note their host IDs and attachment switches.

Step 2: Inspect The Path

Then use those attachment switches to query the path between them.

You can also run the example script:

python3 inspect_path.py of:0000000000000001 of:0000000000000002

The Python logic looks like this:

import requests

BASE = 'http://localhost:8181/onos/v1'
AUTH = ('onos', 'rocks')

paths = requests.get(
    f'{BASE}/paths/of:0000000000000001/of:0000000000000002',
    auth=AUTH
).json()['paths']

for link in paths[0]['links']:
    print(link['src']['device'], link['src']['port'], '->',
          link['dst']['device'], link['dst']['port'])

What to look for You are turning ONOS topology state into a concrete device-and-port path.

What Your App Adds

Your app starts with the same two steps, then adds:

  • install flow rules on each switch along the path
  • watch for a failed link
  • recompute the path
  • replace the old rules with new ones

Mental model First read the path. Then act on the path.

Do It In This Order

Work through the challenge in this order:

  1. Use the walkthrough slides and example scripts to make sure you understand host lookup and path lookup.
  2. Complete the TODOs in lab2_skeleton.py.
  3. Run your app in a separate terminal:
python3 lab2_skeleton.py 10.0.0.1 10.0.0.2
  1. Run the checker in another terminal:
sudo python3 verify_lab2.py 10.0.0.1 10.0.0.2

Keep Mininet, ONOS, and your app running while the checker runs.
5. Trigger a failure with link s1 s2 down and confirm your app reroutes traffic.

If you get stuck, compare your work with:
solutions/lab2_solution.py

Check your work

Keep Mininet, ONOS, and your Lab 2 app running while you verify.

Run:

sudo python3 verify_lab2.py 10.0.0.1 10.0.0.2

The checker looks for:

  • ONOS is reachable
  • topology and hosts are discovered
  • your app installed flow rules
  • the path can reroute after a link failure

To check the reference solution instead:

python3 solutions/lab2_solution.py 10.0.0.1 10.0.0.2
sudo python3 verify_lab2.py 10.0.0.1 10.0.0.2

Troubleshooting

  • if hosts is empty in ONOS, run pingall in Mininet first
  • if ONOS shows hosts but ip(s)=[], run pingall again and then recheck hosts
  • if devices is empty, confirm ONOS is running and openflow is active
  • if paths ... is empty, focus on links and ports before debugging your Python app
  • if your app prints "host not found", ONOS has not learned that host yet
  • if rerouting does not happen, check whether the failed port shows isEnabled: false
  • if needed, compare your code with solutions/lab2_solution.py

Hints

To find hosts by IP Query /hosts and look inside each host's ipAddresses list.

To compute a path First find the host attachment devices from /hosts, then query /paths/<srcDevice>/<dstDevice>.

To install a rule POST to /flows/<deviceId> using the JSON shape in flow_rule_template.json.

To clean up old rules Query /flows/<deviceId>, keep only rules with your appId, then DELETE them one by one.

To detect a failure Poll /devices/<deviceId>/ports and watch for a path port whose isEnabled field becomes false.

Summary

What you did in Lab 2:

  • connected Mininet to ONOS and observed topology discovery
  • explored the network from the ONOS CLI and REST API
  • used intents to request connectivity at a higher level
  • watched ONOS install flow rules automatically
  • observed rerouting after a link failure
  • built a small controller-side application through the ONOS REST API

Next in the schedule is Concepts 3, where the workshop shifts from centralized control to path steering with SRv6. After that, Lab 3 uses SRv6 headers to steer traffic through the network without relying on ONOS to make every forwarding decision.
