Lab 1

Programmable Forwarding

with OVS + Mininet

Rogers Executive Workshop 3 — Transport Network Programmability

Getting Started

Mininet, OVS, and your first flow rules

Lab 1 at a glance

In this lab you will:

  • start from Mininet's default topology
  • observe how OVS behaves with and without flow rules
  • install a few OpenFlow rules by hand
  • build a simple topology in Python

What to focus on For this lab, treat each rule as match -> action -> counter.

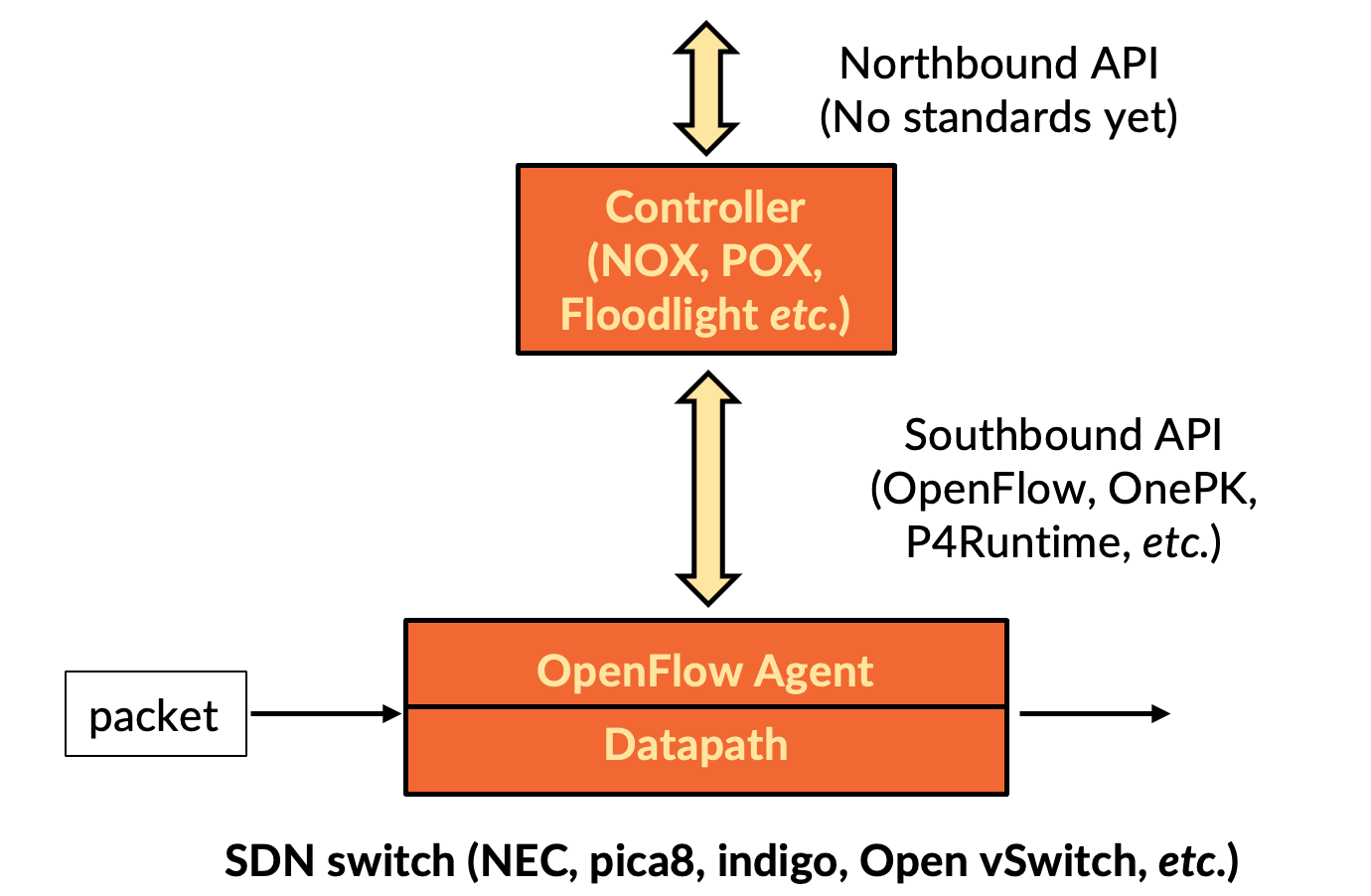

SDN and OpenFlow

Diagram showing the relationship between software-defined networking and OpenFlow.
  • SDN separates the control plane from the data plane
  • OpenFlow is one protocol a controller can use to program switches
  • in this lab, we mostly program OVS directly from the terminal

Keep this distinction in mind OpenFlow describes the rule; OVS applies it in the switch.

Open vSwitch (OVS)

OVS is a software switch for Linux with OpenFlow support.

  • packet forwarding happens in the datapath
  • management and control happen in userspace
  • a remote controller can install rules remotely
  • in this lab we mainly use ovs-ofctl -O OpenFlow13 and ovs-vsctl

In this lab Think of OVS as the switch you are programming.

Mininet

Mininet is a lightweight network emulator that lets you run hosts, switches, and links on a single machine.

  • hosts run in separate Linux network namespaces
  • switches are software switches built with OVS
  • the CLI lets us inspect nodes and run host commands quickly
  • sudo mn starts a tiny network: h1 -- s1 -- h2

Why this matters You can test network behavior quickly without needing separate physical devices.

Before you start

For the lab exercises:

  • work from ~/labs/lab1
  • keep two terminals open
  • run Mininet and ovs-ofctl commands with sudo
  • use Ctrl+D or exit to leave the Mininet CLI cleanly

Start Mininet

Start the default topology:

sudo mn
Default topology started by sudo mn with hosts h1 and h2 connected through switch s1.

You should land in the Mininet CLI with two hosts and one switch:

mininet>

You should see h1, h2, s1, and a default controller.

First Mininet commands

Use these commands right away in the Mininet CLI:

mininet> nodes
mininet> net
mininet> dump
mininet> h1 ip addr show
  • nodes lists all hosts and switches
  • net shows the link-level topology
  • dump shows interface details
  • prefix a host name to run a command inside that host

Inspect the default topology

Now verify that the default topology came up correctly:

mininet> nodes        # list all nodes
mininet> net          # show links between nodes
mininet> dump         # show interface details

Run commands inside a host:

mininet> h1 ifconfig
mininet> h1 ip addr show

What this shows Each host has its own interface (h1-eth0 etc.), because Mininet isolates hosts in separate Linux network namespaces.

Test connectivity

Ping between hosts and run a bandwidth test:

mininet> h1 ping -c 3 h2
mininet> pingall
mininet> iperf h1 h2

What this means Pings succeed because Mininet starts with a default learning controller. In the next step, you will disable it and see what happens without explicit rules.

Useful extras

mininet> pingall
mininet> iperf h1 h2
mininet> py h1.IP()

You can use these tools pingall checks connectivity, iperf measures bandwidth, and py gives you access to Mininet objects from the CLI.

Built-in Mininet topologies

Mininet can also start larger topologies without writing Python:

sudo mn --topo=single
sudo mn --topo=linear,3
sudo mn --topo=tree,depth=2,fanout=2

You will do this later in the lab After the built-in examples, you will build your own topology in Python.

OpenFlow and OVS

Programming the data plane

OpenFlow — match + action

OpenFlow lets you program switch forwarding behaviour. Every flow rule has three parts:

Match — which packets does this rule apply to?

  • Source / destination IP, MAC, TCP/UDP port, input port, VLAN tag
  • OpenFlow 1.3 defines 40+ possible match fields

Action — what to do with matched packets?

  • output:N — forward out port N
  • drop — discard the packet
  • output:FLOOD — send out all ports

Counter — n_packets and n_bytes track traffic matching this rule

For this lab You only need match and action. The full OpenFlow model comes later in the workshop.

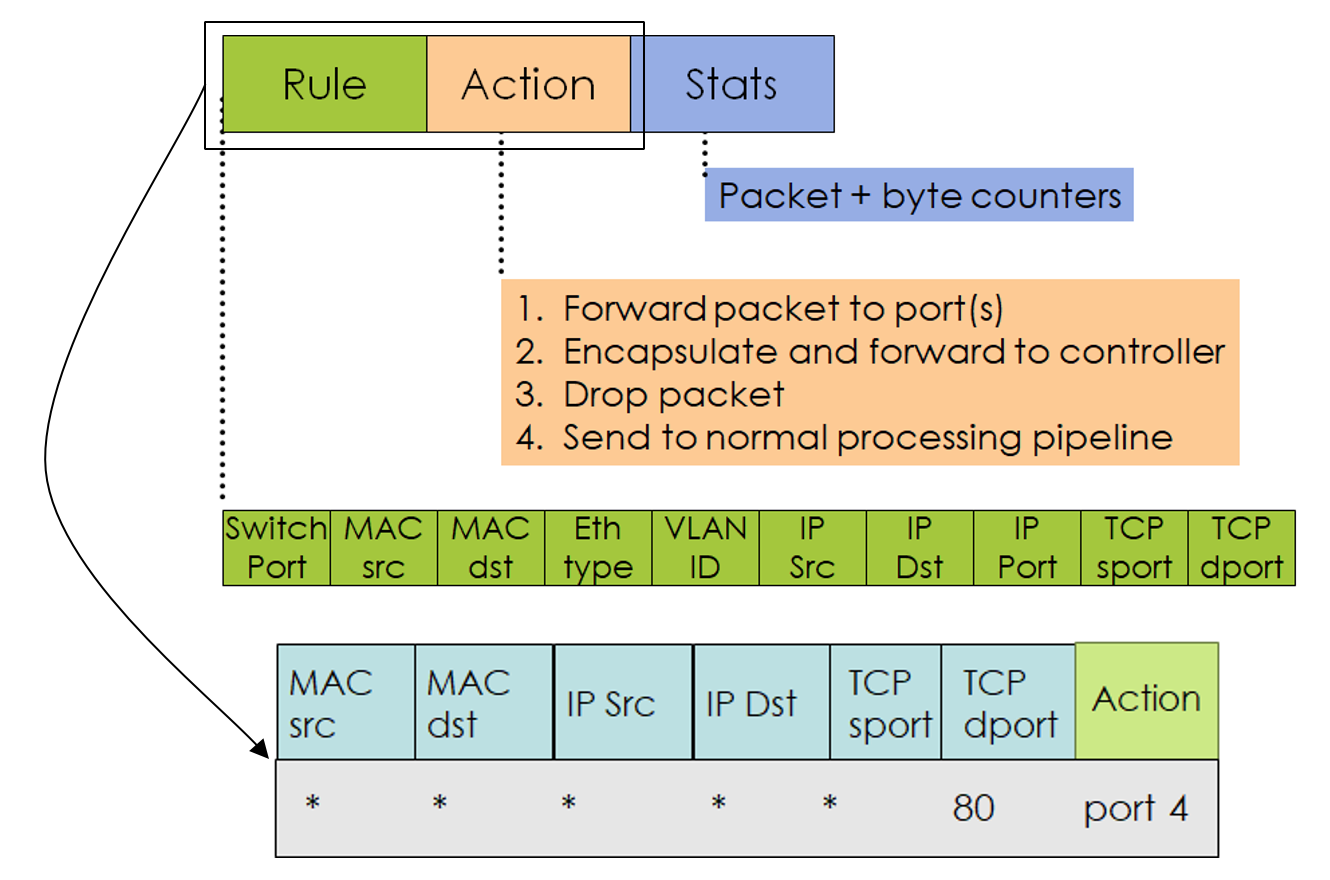

Example flow-table entry

Annotated example of an OpenFlow flow-table entry.

How to read this entry Match fields select packets, counters show activity, and actions define the forwarding behavior.

OVS command reference

ovs-ofctl -O OpenFlow13 manages OVS flow rules from the terminal:

# Inspect a switch
sudo ovs-ofctl -O OpenFlow13 show s1              # ports and capabilities
sudo ovs-ofctl -O OpenFlow13 dump-flows s1        # all flow rules + counters
sudo ovs-ofctl -O OpenFlow13 dump-ports s1        # per-port statistics

# Manage flow rules
sudo ovs-ofctl -O OpenFlow13 add-flow s1 <spec>   # add a rule
sudo ovs-ofctl -O OpenFlow13 del-flows s1         # remove all rules

Before adding rules Run ovs-ofctl -O OpenFlow13 show s1 first, because port numbers depend on link order and may differ from the examples.

Observe switches with no rules

Restart Mininet with a two-switch topology and no controller:

sudo mn -c
sudo mn --topo=linear,2 --controller=none --switch ovs,protocols=OpenFlow13

Try to ping:

mininet> h1 ping -c 3 h2     # fails
mininet> pingall              # all fail

Inspect the empty flow tables:

sudo ovs-ofctl -O OpenFlow13 dump-flows s1
sudo ovs-ofctl -O OpenFlow13 dump-flows s2

What you should observe Without flow rules, switches drop all traffic. No rule means no forwarding.

Add flow rules manually

Install bidirectional rules to connect h1 and h2 across s1 -> s2:

# s1: route h1↔h2 traffic toward s2
sudo ovs-ofctl -O OpenFlow13 add-flow s1 \
  ip,nw_src=10.0.0.1,nw_dst=10.0.0.2,actions=output:2
sudo ovs-ofctl -O OpenFlow13 add-flow s1 \
  ip,nw_src=10.0.0.2,nw_dst=10.0.0.1,actions=output:1

# s2: same rules on the other switch
sudo ovs-ofctl -O OpenFlow13 add-flow s2 \
  ip,nw_src=10.0.0.1,nw_dst=10.0.0.2,actions=output:2
sudo ovs-ofctl -O OpenFlow13 add-flow s2 \
  ip,nw_src=10.0.0.2,nw_dst=10.0.0.1,actions=output:1

Before you paste the rules Use ovs-ofctl -O OpenFlow13 show s1 and ovs-ofctl -O OpenFlow13 show s2 to confirm which port connects to which neighbour.

Test connectivity and inspect counters

Verify h1 ↔ h2 connectivity:

mininet> h1 ping -c 5 h2
mininet> iperf h1 h2

Inspect the flow rules:

sudo ovs-ofctl -O OpenFlow13 dump-flows s1

You should see counters like:

cookie=0x0, duration=12.3s, n_packets=5, n_bytes=490,
  ip,nw_src=10.0.0.1,nw_dst=10.0.0.2 actions=output:2

What to check n_packets and n_bytes should increase as traffic matches your rule.

Mininet Python API

Building topologies in code

A minimal topology in Python

Create simple_topo.py:

from mininet.net import Mininet
from mininet.node import OVSSwitch
from mininet.link import TCLink
from mininet.cli import CLI

net = Mininet()

h1 = net.addHost('h1', ip='10.0.0.1/24')
h2 = net.addHost('h2', ip='10.0.0.2/24')
s1 = net.addSwitch('s1', cls=OVSSwitch, protocols='OpenFlow13')

net.addLink(h1, s1, cls=TCLink, bw=10, delay='5ms')
net.addLink(h2, s1, cls=TCLink, bw=10, delay='5ms')

net.start()
net.staticArp()
CLI(net)
net.stop()

Run it and add flow rules

Run the topology:

sudo python3 simple_topo.py

pingall will fail — no rules. Add them from a second terminal:

sudo ovs-ofctl -O OpenFlow13 add-flow s1 \
  ip,nw_src=10.0.0.1,nw_dst=10.0.0.2,actions=output:2
sudo ovs-ofctl -O OpenFlow13 add-flow s1 \
  ip,nw_src=10.0.0.2,nw_dst=10.0.0.1,actions=output:1

mininet> h1 ping -c 3 h2    # now works

net.staticArp() preloads ARP entries, so the IP rules above are enough for this example.

Before adding rules, run ovs-ofctl -O OpenFlow13 show s1 once so the port numbers match your setup.

Use this structure Every topology follows the same pattern: add nodes -> add links -> start() -> interact -> stop().

Independent Challenge

Challenge topology

Build the topology below and implement the required connectivity:

Challenge topology with host h1 attached to s1, host h2 attached to s2, host h3 attached to s4, and switches s1, s2, s3, and s4 forming two possible branches.

All links: 10 Mbps, 5 ms delay

Use the same link settings everywhere so you can focus on forwarding behavior.

  • h1 and h2 must communicate
  • h1 and h3 must communicate
  • h2 and h3 cannot reach each other

Get h1 <-> h2 working first, then add the rules for h1 <-> h3.

Your tasks

Work through the challenge in this order:

  1. Complete the topology in topology_starter.py, then start it:
sudo python3 topology_starter.py
  1. Add the flow rules in install_rules.sh, then run them from a second terminal:
sudo bash install_rules.sh
  1. Explain in a comment: which missing rule prevents h2 and h3 from communicating?

If you get stuck, compare your work with:
solutions/topology_solution.py and solutions/install_rules_solution.sh

Challenge files

Use these files for the challenge:

  • topology_starter.py builds the Mininet topology
  • install_rules.sh installs your OpenFlow rules
  • verify_challenge.py checks whether the required behavior works
  • solutions/ contains the reference answers

Check your work

Use the checker after your topology and rules are ready.

To verify your own work, run:

sudo python3 verify_challenge.py

By default, the checker uses:

topology_starter.py
install_rules.sh

If the checker reports an incomplete topology, finish the TODO sections in topology_starter.py before rerunning it.

To verify the reference solution instead, run:

sudo python3 verify_challenge.py --topology solutions/topology_solution.py --rules solutions/install_rules_solution.sh

Troubleshooting

  • h3 is missing a host link means the topology TODOs are still incomplete
  • version negotiation failed means the command needs ovs-ofctl -O OpenFlow13
  • if traffic still fails, check port numbers with show, then rule counters with dump-flows
  • if needed, compare your files with the reference solutions in solutions/

Hints

To find port numbers Run ovs-ofctl -O OpenFlow13 show <switch> or net in the Mininet CLI.

One valid path plan Use s1 -> s2 for h1 <-> h2, and s1 -> s3 -> s4 for h1 <-> h3.

When a switch has multiple outgoing links Include in_port to avoid ambiguity:
ip,in_port=1,nw_src=10.0.0.1,nw_dst=10.0.0.2,actions=output:2

If your rules keep disappearing Add idle_timeout=0 to prevent them from expiring:
sudo ovs-ofctl -O OpenFlow13 add-flow s1 idle_timeout=0,ip,...

For h2 and h3 isolation You do not need an explicit drop rule. If no rule matches, the packet is dropped automatically.

If traffic still does not flow Run ovs-ofctl -O OpenFlow13 dump-flows <switch> on each switch along the path. A n_packets counter stuck at 0 usually means that switch is missing a rule.

Stretch challenge

After your main solution works, reroute h1 <-> h3 over the alternate branch.

  • first make h1 <-> h3 work via s1 -> s3 -> s4
  • then change the rules so it works via s1 -> s2 -> s4
  • keep h1 <-> h2 working throughout
  • use ovs-ofctl -O OpenFlow13 dump-flows counters to confirm which path is active

What you should observe Connectivity still works, but different switches and rules accumulate the packet counters.

Stretch reference: solutions/install_rules_stretch.sh

Summary

What you did in Lab 1:

  • Started from Mininet's default topology and basic CLI commands
  • Observed that OVS switches drop all traffic without flow rules
  • Installed match + action flow rules manually using ovs-ofctl
  • Watched packet counters confirm your rules were working
  • Built a simple custom topology using the Mininet Python API

Next in the schedule is Concepts 2, where you will connect this hands-on work to the OpenFlow model, controllers, and intents. After that, Lab 2 moves from manual rules to controller-based connectivity with ONOS.
